Amit-2020R Radio Receiver Amit-2020T Telephone Receiver Amit-2020TR Tel. & Radio Receiver Amit-2020RP Radio Repeater

Amit-2020TR Tel. & Radio Channel Receiver

The Amit-2020TR combined Telephone & Radio Channel Receiver is a member of our new line of Stand-Alone compact and Low-cost Receivers. Connected to up-to 7 Telephone Lines and a Radio Transceiver and combined with an Automation Software - it completes a fully featured Telephone & Radio Channel Central Alarm Monitoring Station.
Get More Info

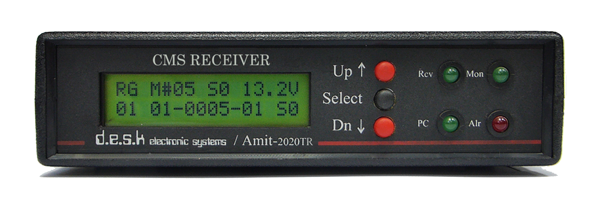

Amit-2020TR Telephone/Radio Channel Receiver

Main Features:

  • On the Tel. Channel: Decoding Contact-ID , Galaxy and legacy 4/2,3/2,3/1 formats.
    On the Radio Channel: Decoding Galaxy High-Speed and Motorola formats (Motorola Intrac, MilcolD and all derivatives).
  • Connecting to up-to 7 PSTN incoming lines (in 1-Line line-card increments) and a VHF/UHF Radio Transceiver.
  • Lines & Power status monitoring and report.
  • Memory for last 1,000 incoming Events.
  • Display of incoming Messages and System Status, manual scroll.
  • Two Serial RS-232 outputs in two operational modes:
    - Backup Mode: automatic switchover to second port if failing to receive Acknowledge from the Automation System.
    - Dual-Systems mode: sending the Events to two separate Automation Systems – with separate Events Queue for each.
  • Optional IP output using TCP/IP LAN connection – in two operational modes: Backup Mode & Dual-Systems mode.
  • Internal Speaker for Audio monitoring of the data communication on any (manually) selected incoming Tel. Line and the Radio channel.
  • Compatible with Two-Way Voice Emergency Systems on the Tel. channel.
  • Very small dimensions – 4 x 16 x 35 cm.
  • Very low power consumption – 120 ma @ 12VDC for a full 8 line system (idle operation mode).
