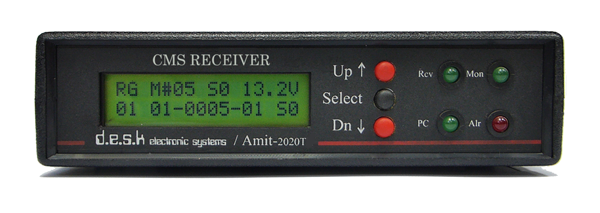

Amit-2020T - Telephone Channel Receiver
The Amit-2020T Telephone Channel Receiver is a member of our new line of Stand-Alone compact and Low-cost Receivers. Connected to up-to 8 Telephone Lines and combined with an Automation Software - it completes a fully featured Telephone Channel Central Alarm Monitoring Station.
Get More Info
Main Features:
- Decoding Contact-ID , Galaxy and legacy 4/2,3/2,3/1 formats.
- Up-to 8 PSTN incoming lines (in 1-Line line-card increments).
- Lines & Power status monitoring and report.
- Memory for last 1,000 incoming Events.
- Display of incoming Messages and System Status, manual scroll.
- Two Serial RS-232 outputs in two operational modes:
- Backup Mode: automatic switchover to second port if failing to receive Acknowledge from the Automation System.
- Dual-Systems mode: sending the Events to two separate Automation Systems – with separate Events Queue for each.
- Optional IP output using TCP/IP LAN connection – in two operational modes: Backup Mode & Dual-Systems mode.
- Internal Speaker for Audio monitoring of the data communication on any (manually) selected incoming Tel. Line.
- Compatible with Two-Way Voice Emergency Systems.
- Very small dimensions – 4 x 16 x 35 cm.
- Very low power consumption – 120 ma @ 12VDC for a full 8 line system (idle operation mode).
