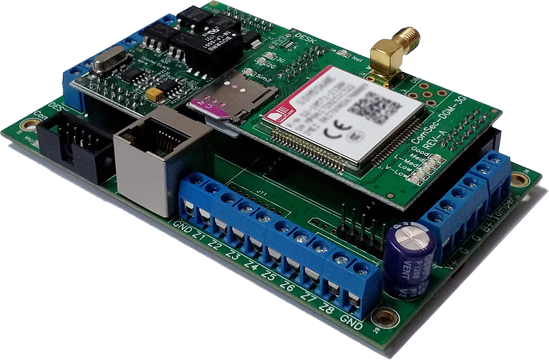

ComSec-2000_4G Alarm Communicator


The new ComSec-2000_4G (CAT-M1 & NB-IoT) series of Alarm Communicators has an extended range of up - to 18x2(!) separate communication channels (see a detailed list here), for a supervised Two-Way Communication of Events to a Central Monitoring Station. An extensive range of models is available, each with a different mix of all the available Communication Channels – see a full list of models here

Applications:

  • Replacement for Two-Way and One-Way Long-Range Radio Communicator.
  • General purpose Alerts Communicator to a Central Monitoring Station.
  • Fire Alarm Communicator.
  Instant Price Quote for ComSec-2000_4G

Main Features:

  • Available Communication Channels:
    - CAT-M1 (on 4G infrastructure)
    - NB-IoT (on 4G infrastructure)
    - GPRS 2/2.5G (fall-back option)
    - IP (10/100 Mbs Ethernet)
    - WiFi (4 different channels)
    - PSTN Dialer (Contact-ID format)
  • Dual-SIM models feature two SIM cards, enabling the unit to connect to a second GSM carrier in case the Primary carrier communication path fails.
  • All models feature 8 dry-contact Inputs + Tamper input, each programmable for its Event Code, Polarity, Sensitivity. Optionally, the first 6 inputs can be programmed for End-of-Line Resistor protection.
  • Monitoring of Power Supply Input (Mains AC power monitoring) and Battery Voltage (including Battery test under Load). Reporting on AC status, Battery Low & Battery Missing.
  • Extended operation voltage range: 8-28 VDC (compatible with 24V Fire Alarm Panels).
  • Simple Alarm Panel functionality - the inputs can be programmed for Alarm Zones property, e.g. Immediate, Delayed, Follower, 24-Hour, Silent type. One input can be designated as an Arm/Disarm Key Switch input. Outputs are used for Siren and Alarm System Status monitoring. The unit can be optionally remotely Armed/Disarmed from the Central Server.
  • Universal Alarm Panel Interface (in "P": models), connects to all types of Alarm Panels on their Tel. Line Input and retransmits all the Events via the GPRS channel (Contact-ID format only).
  • Option: 4 Outputs for internal state monitoring and Remote Control:
    - 1 Change-Over dry contact Relay
    - 3 open-collector, 1 Amp. Max.
  • 5-Level GSM Signal Strength indicator (RSSI).
  • Connected Network type indicator LEDs – GSM/IP-WiFi/Connection via SIM1 (GSM Provider 1) / SIM2 (Provider 2).
  • NEW: Programming the unit from any standard Internet Browser, from any PC or Smart-Phone that connects to the Internet: by default, the ComSec-2000 connects to a special Server with Web interface service. It can then be identified by its unique SIM card serial number (IMEI) or the MAC address on IP channel, and then re-programmed from any device with WEB access, such as a hand-held Cellular Smart-Phone. In addition to programming, the technician can then check the proper function of the unit, including the RF reception level at the site (RSSI).

GSM Communication Parameters:

  1. CAT-M1:
    1. Model E: Frequency Bands: B3,B5,B8,B20,B28
    2. Model G: Frequency Bands: B1,B2,B3,B4,B5,B8,B12,B13,B17,B18,B19,B20,B26,B28,B39
  2. NB-IoT :
    1. Model E: Frequency Bands: B3,B5,B8,B20,B28
    2. Model G: Frequency Bands: B1,B2,B3,B5,B8,B12,B13,B17,B18,B19,B20,B26,B28
  3. GPRS/EDGE network (2G/2.5G) (Fall-back option)
    - Quad-Band 850/900/1800/1900 Mhz
    - Multi-slot class 12
    - Max data transfer: GPRS – 85.6 Kbps ; EDGE – 236.8 Kbps

IP Communication Parameters

  • Standard 10/100 Mbs Ethernet connection.
  • Static IP or Automatic IP (DHCP) settings.

WiFi Communication Parameters (4 independent channels)

  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b.
  • Encryption modes: none, wep-open, wep, wpa-tkip, wpa-aes, wpa2-tkip, wpa2-aes, wpa/wpa2-tkip, wpa/wpa2-aes.
  • Static IP or Automatic IP (DHCP) settings (for each channel).
  • Internal / External antenna.

General

  • Dimension: 117 x 70 x 30 mm.
  • Weight: 100 g. (2000G3PI model).
  • Power consumption: average current (idle mode), "P" models (with UPI interface installed), both GSM & IP/WiFi active on 2000G4PI_DS models:
    Model/Op.Voltage 12VDC 24VDC
    2000G4PI_DS (IP) 135 ms 65 ma
    2000G4PI_DS (WiFi) 145 ma 75 ma
    2000G4P_DS 60 ma 35 ma
    2000PI (IP) 100 ma 55 ma
    2000PI (WiFi) 110 ma 65 ma

Note: "T" models (equipped with PSTN Dialer instead of the UPI) consume about 10-to-20 ma less than indicated in the table (when not dialing).
