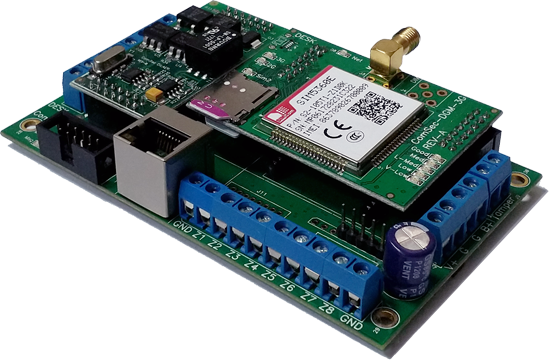

ComSec-2000 Alarm Communicator

The new ComSec-2000 series of Alarm Communicators has an extended range of up - to 14x2(!) separate communication channels (see a detailed list here), for a supervised Two-Way Communication of Events to a Central Monitoring Station. An extensive range of models is available, each with a different mix of all the available Communication Channels – see a full list of models here

Applications:

• Replacement for Two-Way and One-Way Long-Range Radio Communicator.
• General purpose Alerts Communicator to a Central Monitoring Station.
• Fire Alarm Communicator.

Main Features:

• Available Communication Channels:
  - GPRS 2/2.5G
  - GSM 3/3.5G (with automatic fall-back to 2/2.5G)
  - IP (10/100 Mbs Ethernet)
  - WiFi (4 different channels)
  - PSTN Dialer (Contact-ID format)

• Dual-SIM models feature two SIM cards, enabling the unit to connect to a second GSM carrier in case the Primary carrier communication path fails.
• All models feature 8 dry-contact Inputs + Tamper input, each programmable for its Event Code, Polarity, Sensitivity. Optionally, the first 6 inputs can be programmed for End-of-Line Resistor protection.
• Monitoring of Power Supply Input (Mains AC power monitoring) and Battery Voltage (including Battery test under Load). Reporting on AC status, Battery Low & Battery Missing.
• Extended operation voltage range: 8-28 VDC (compatible with 24V Fire Alarm Panels).
• Simple Alarm Panel functionality - the inputs can be programmed for Alarm Zones property, e.g. Immediate, Delayed, Follower, 24-Hour, Silent type. One input can be designated as an Arm/Disarm Key Switch input. Outputs are used for Siren and Alarm System Status monitoring. The unit can be optionally remotely Armed/Disarmed from the Central Server.
• Universal Alarm Panel Interface (in "P": models), connects to all types of Alarm Panels on their Tel. Line Input and retransmits all the Events via the GPRS channel (Contact-ID format only).
• Option: 4 Outputs for internal state monitoring and Remote Control:
  - 1 Change-Over dry contact Relay
  - 3 open-collector, 1 Amp. Max.

• 5-Level GSM Signal Strength indicator (RSSI).
• Connected Network type indicator LEDs – GSM-2G/GSM-3G/IP-WiFi/Connection via SIM1 (GSM Provider 1) / SIM2 (Provider 2).
• NEW: Programming the unit from any standard Internet Browser, from any PC or Smart-Phone that connects to the Internet: by default, the ComSec-2000 connects to a special Server with Web interface service. It can then be identified by its unique SIM card serial number (IMEI) or the MAC address on IP channel, and then re-programmed from any device with WEB access, such as a hand-held Cellular Smart-Phone. In addition to programming, the technician can then check the proper function of the unit, including the RF reception level at the site (RSSI).

GSM Communication Parameters:

1. GPRS/EDGE network (2G/2.5G)
   - Quad-Band 850/900/1800/1900 Mhz
   - Multi-slot class 12
   - Max data transfer: GPRS – 85.6 Kbps ; EDGE – 236.8 Kbps

2. Dual Band 3G/3.5G, three models (according to GSM provider specs)
   1. Model A – UMTS/HSPA+ 850/1900 Mhz
   2. Model E – UMTS/HSPA+ 900/2100 Mhz
   3. Model D – UMTS/HSPA+ 850/2100 Mhz
   - Max. data transfer : WCDMA 384 Kbps ; HSPA+ 14.4(DL)/5.76(UL) Mbps
3. Available Network types:
   - GPRS (2G)
   - EDGE (2.5G)
   - UMTS (3G)
   - HSDPA (3.5G)
   - HSUPA (3.5G)
   - HSPA (3.5G)
   - HSPA+ (3.5G)


IP Communication Parameters

• Standard 10/100 Mbs Ethernet connection.
• Static IP or Automatic IP (DHCP) settings.

WiFi Communication Parameters (4 independent channels)

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b.
• Encryption modes: none, wep-open, wep, wpa-tkip, wpa-aes, wpa2-tkip, wpa2-aes, wpa/wpa2-tkip, wpa/wpa2-aes.
• Static IP or Automatic IP (DHCP) settings (for each channel).
• Internal / External antenna.

General

• Dimension: 117 x 70 x 30 mm.
• Weight: 100 g. (2000G3PI model).
• Power consumption: average current (idle mode), "P" models (with UPI interface installed), both GSM & IP/WiFi active on 2000G3PI_DS models:


  Model/Op.Voltage	12VDC	24VDC
  2000G2PI_DS (IP)	135 ms	65 ma
  2000G3PI_DS (WiFi)	145 ma	75 ma
  2000G3P_DS	60 ma	35 ma
  2000PI (IP)	100 ma	55 ma
  2000PI (WiFi)	110 ma	65 ma

Note: "T" models (equipped with PSTN Dialer instead of the UPI) consume about 10-to-20 ma less than indicated in the table (when not dialing).
